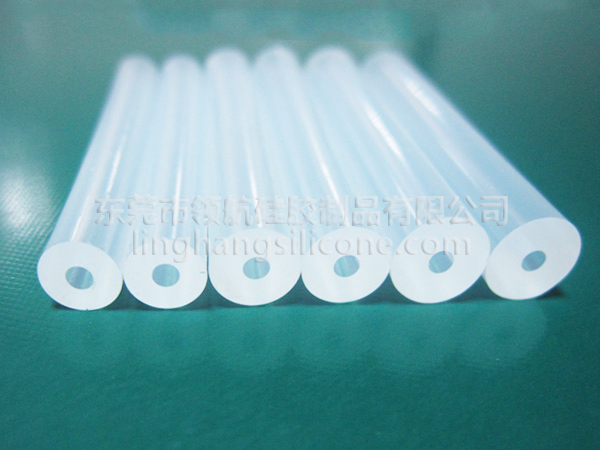

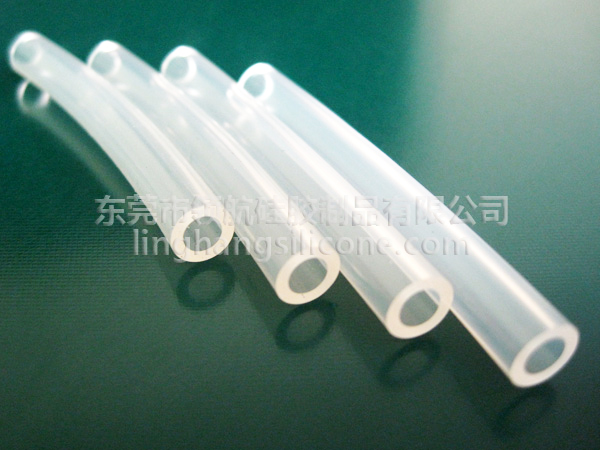

Peristaltic pump silicone tube
Product color transparent
Product hardness 50-60 degree
Product specification 13#, 14#, 15#, 16#, 17#, 18#, 19#, 24#, 25#, 35#, 36#, 73#, 82#
Stability performance
In accordance with the food and drug inspection standards, placed at room temperature yellowing, spray frost, do not spit white, do not fade, no water for a long time scale, no smell, -60-200 degree temperature, weak acid and alkali (acid and alkali resistance of different materials with different intensity), corrosion resistance, aging resistance, tear resistant performance is good, durable, high return under the condition of high elasticity, can be used for ethylene oxide sterilization.
Pump head YZ1515/YZ2515/YZ35
Characteristic With a certain elasticity, that is, the silicone tube can be quickly restored after the radial compression
With a certain degree of wear resistance
Ability to work under pressure
No leakage (good tightness)
Low adsorption, good temperature resistance, not easy to aging, no swelling, corrosion resistance.
Characteristics of two, peristaltic pump silicone tube
1, tear resistance, tensile properties, excellent anti fatigue performance According to the strict tolerances.
2 tube production, ensure the tubing size meet process requirements.
3 pump, high transparency, smooth wall, high cleanness.
4, the majority of organic solvents can be transported to withstand the concentration of acid and alkali within 30%.
5, anti-aging, anti-oxidation, low permeability.
6, can transport high viscosity liquid.
7, with high dielectric constant.
8, with the medical certification of the three categories, in line with the requirements of food grade GMP and can be sterilized with ethylene oxide (ETO) or sterilization pot.
three, peristaltic pump silicone rubber application
Application: pharmaceutical equipment, engineering pump body, medical equipment, water treatment equipment, water dispenser, food industry, laboratory equipment, etc..
four, select the principle of peristaltic pump silicone hose
A, chemical corrosion resistance / chemical compatibility
When transmitting different fluids, the hose should exhibit some excellent chemical properties. Such as: adsorption, low temperature resistance, not easy to aging, swelling, corrosion, precipitates low corrosion resistance decreases with the increase of temperature, chemicals have no effect on the tube at room temperature may have an impact on the hose with the increase of temperature.
B, pressure
The application of peristaltic pump is limited by the bearing pressure of the hose. If the pressure of the system exceeds the limit of the hose, the hose expands, causing excessive wear of the hose or rupture of the hose. The factors that affect the pressure of the hose are: material, diameter and wall thickness.
C, temperature
The hose is suitable for the working temperature range. Different materials have different temperature performance.
D, size
The size of the hose has a direct impact on the flow rate. The design of the pump will consider the inner diameter and wall thickness of the hose. The inner diameter of the hose determines the flow rate, and the wall thickness affects the ability of the hose to be compressed and rebound.
E, flexible hose / elastic / life
The ability of different hose to resist repeated extrusion and friction. Different pipe type, pipe, pump head, running speed have different life. The service life is called the flexible life in the pump system, in the specific application, the pump characteristic is very consistent. Choose long life, thick wall pipe, the use of large flow pump, running at a lower speed can get a longer hose life.
